Additive manufacturing (AM), sometimes referred to as 3D printing, is a manufacturing process used to produce three-dimensional solid parts and components. Objects are created using a series of additive layers put down in succession, each slightly different than the one before it, to create a finished three-dimensional part.
Since material is added to create the part, this process is known as additive manufacturing. This process is completely the opposite of traditional part production in which a part is made by removing material through a machining process.
Additive Manufacturing
GTP developed tungsten and tungsten carbide-cobalt (WC-Co) based powders ideally suited for achieving high density parts fabricated using different additive manufacturing technologies like binder jetting and powder bed fusion (Selective Laser Sintering or Electron Beam Melting).
There are numerous advantages to the AM process, including:
- Processing of complex parts to near net shape
- Minimizes need for expensive tooling
- Reduces prototyping costs
- Faster from prototype to production Potential to create distinctive alloys or microstructures
- Smaller environmental footprint
- Production is easily adapted to a change in the printed part
- Lighter weight alternative to solid parts
The following table shows additive manufacturing methods and suitable materials. For more information, please don’t hesitate to contact one of our principal scientists.
| Tungsten Metal |
Tungsten Carbide Cobalt |
Copper Coated Tungsten | |||
|---|---|---|---|---|---|
| Powder Grade Designation | AM WD100 | AM WD200 | AM WC701 | AM WC702 | AM WCu |
| Direct Metal Laser Sintering (DMLS, SLS, EBM) |  ready-to-use |
ready-to-use |
– | – | – |
| Binder Jetting | – | – | ready-to-use |
ready-to-use |
– |
| High Velocity Deposition (Cold Spray) | – | – | – | – | ready-to-use |
Please feel free to get in contact with our expert, Thomas Wolfe has all the details.
Thomas Wolfe, Ph.D.
Phone: +1 570 268 5344
E-mail: thomas.wolfe@globaltungsten.com
Tungsten Powder for Direct Metal Laser Sintering (DMLS, EBM, SLS)
AM WD100, a high purity spherical tungsten powder
| Particle Size (μm) | D10 | D50 | D90 |
|---|---|---|---|
| 5-10 | 5-15 | >15 | |
| Bulk Density (g/cm3) | 8-12 | ||
AM WD200, a high purity spherical tungsten powder
| Particle Size (μm) | D10 | D50 | D90 |
|---|---|---|---|
| 5-15 | 15-30 | >30 | |
| Bulk Density (g/cm3) | 6-12 | ||
| Carney Flow (s/200g) | 15 max | ||
AM W300, a high purity crystalline tungsten powder
| Particle Size (μm) | D10 | D50 | D90 |
|---|---|---|---|
| 10-25 | 25-40 | >40 | |
| Bulk Density (g/cm3) | 5-10 | ||
| Carney Flow (s/200g) | 15 max | ||
Tungsten Carbide-Cobalt Powder for Binder Jetting Printers
WC720A12
| Particle Size (μm) | D10 | D50 | D90 |
|---|---|---|---|
| 10-25 | 15-30 | >30 | |
| HF: Hall Flow (s/50g) | HF: <20 | ||
| App. Density (g/cm3) | 4-8 | ||
| Chemical Composition (%) | 11-13 | ||
WC721A12
| Particle Size (μm) | D10 | D50 | D90 |
|---|---|---|---|
| 5-15 | 15-30 | >20 | |
| HF: Hall Flow (s/50g) | HF: <20 | ||
| App. Density (g/cm3) | 4-8 | ||
| Chemical Composition (%) | 11-13 | ||
WC730A12
| Particle Size (μm) | D10 | D50 | D90 |
|---|---|---|---|
| 5-15 | 15-30 | >20 | |
| HF: Hall Flow (s/50g) | HF: <20 | ||
| App. Density (g/cm3) | 4-8 | ||
| Chemical Composition (%) | 11-13 | ||
WC740A17
| Particle Size (μm) | D10 | D50 | D90 |
|---|---|---|---|
| 5-15 | 15-30 | >20 | |
| HF: Hall Flow (s/50g) | HF: <20 | ||
| App. Density (g/cm3) | 4-8 | ||
| Chemical Composition (%) | 16-18 | ||
WC780A10
| Particle Size (μm) | D10 | D50 | D90 |
|---|---|---|---|
| 5-15 | 15-30 | >20 | |
| HF: Hall Flow (s/50g) | CF: <20 | ||
| App. Density (g/cm3) | 4-8 | ||
| Chemical Composition (%) | 9-11 | ||
WC780A12
| Particle Size (μm) | D10 | D50 | D90 |
|---|---|---|---|
| 5-15 | 15-30 | >20 | |
| HF: Hall Flow (s/50g) | CF: <20 | ||
| App. Density (g/cm3) | 4-8 | ||
| Chemical Composition (%) | 11-13 | ||

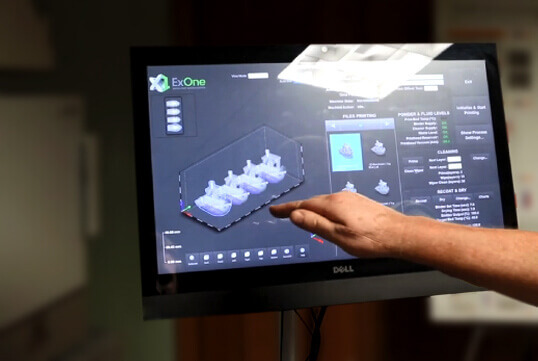

The video shows samples of tungsten carbide parts being printed with an ExOne Innovent binder jetting printer in Towanda, PA, USA.
